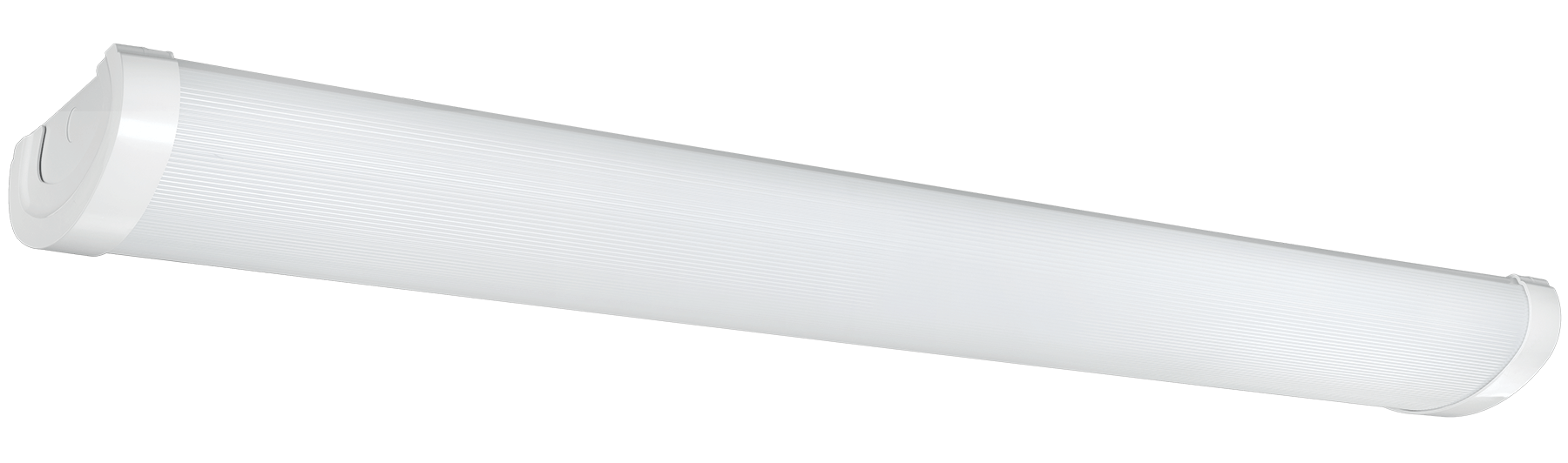

56514142 – 4′ EZ Install Commercial Wrap Light – 0-10V Dimmable

4′ – 39w EZ Install Commercial Wrap Light, 120-277v, 0-10V Dimmable, DLC

Watts: 39
Lumens: 4300
CCT: 4000K
Input Voltage: 120-277V
Part #: WR-4-43-840-MV-D
Model #: 56514142

SKU: 56514142 Category: Tags: , ,

4′ – 39w EZ Install Commercial Wrap Light, 120-277v, 0-10V Dimmable, DLC

Part #: WR-4-43-840-MV-D
Model #: 56514142

The 4′ EZ Install Commercial Wrap Light is designed to make installation quick and easy. The 43W, 4300 Lumen fixture features a robust, impact resistant polycarbonate lens that hinges from fixture body which minimizes multiple times up and down the ladder.  The EZ Install Commercial Wrap can be installed flushmounted and tandem connected up to 10 fixtures on one electrical connection.  0-10V Dimmable.

ETi Advantage:

  • Quick and easy installation with hinged cover and snap-in quick connect wire junctions
  • Commercial quality and performance
  • Impact resistant polycarbonate lens
  • Connect up to 10 fixtures in-line

Features and Specifications:

  • 4′ Wrap, 39w, 4300 Total Lumens
  • 4000K
  • 120-277V
  • DLC Approved
  • UL listed Damp Locations
  • L70 > 50,000 hours
  • 5 year limited warranty
  • Product dimensions – 48 x 7.4 x 2.7 in.

Compatible Accessories:

  • 90600144 – Step Dimming Motion Sensor, Microwave with daylight sensor, Internally Mounted, Up to 49′ mounting height, detection angle 150° (wall), 360° (ceiling), compatible w/ 54655441, 54676241, 54676341, 54677441, 56514142
  • 90600145 – Motion Sensor, Microwave with daylight sensor, Internally mounted, Up to 19′ mounting height, detection angle 150° (wall), 360° (ceiling) – compatible w/ compatible w/ 54655441, 54676241, 54676341, 54677441, 56514142, 54676142, 56513141, 53603142
  • 90600143 – Battery Back-up for High Bays, LiFEPO4 Battery, illumination time ≥ 90 minutes @ 25w, recharge time 48 hours max. – Compatible with all wrap lights

SPECIFICATIONS

Wattage

39

Lumen Output

4300

Input Voltage

120-277

CCT (K)

4000

CRI

80

DLC

Yes
