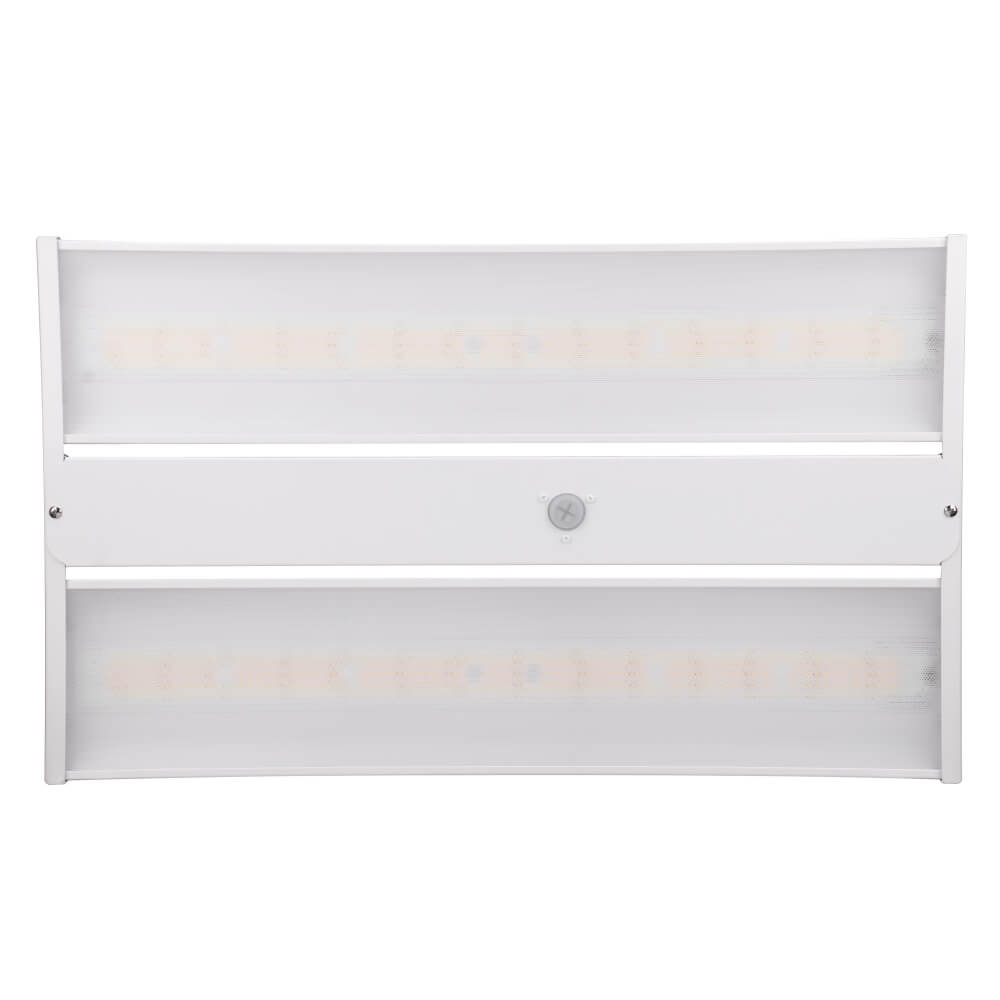

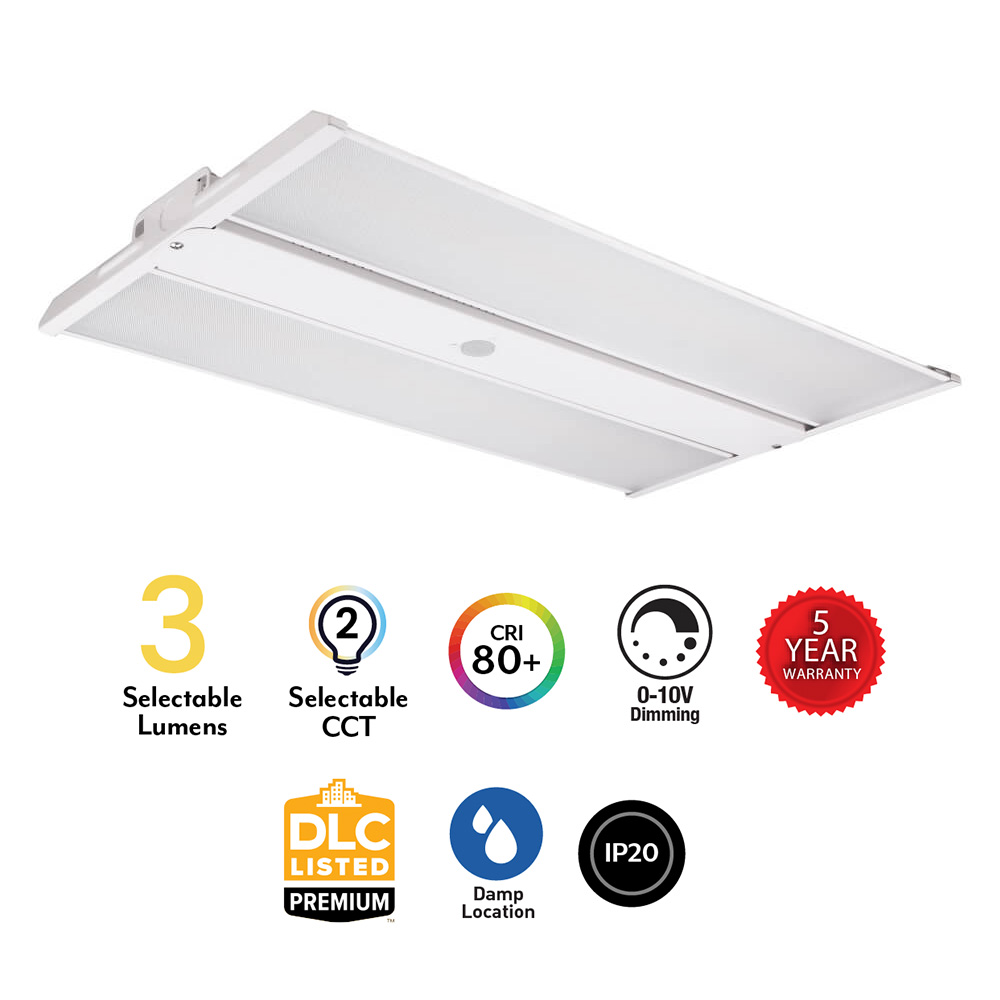

CLHB | Compact Linear High Bay, Lumen Package 3, 0-10V

Part #: CLHB-3-LB3-CP2-MV-LVD

Model #: 63822101

KEY FEATURES
Each CLHB Compact High Bay series combines a small profile with superior lumen output and has an excellent operating temperature range from 22°F to 122°F. Luminaires are both CCT and wattage selectable — offering flexibility and efficiency.

CCT & Light Quality
• 2 Selectable CCTs (4000K, 5000K), 80+ CRI
Light Output & Efficacy
• 3 Wattage Levels
Lm Pkg 3: 180 | 200 | 220W (25500 – 31500 lm)
• > 90,000 hours LEDs at L70 for reduced maintenance
Dimming, Voltage, Controls
• 0–10V dimmable driver, down to 10%
• 120–277V and 347-480V options available, 50/60Hz
• Surge protection: 6kV Standard (10kVA MTO option available)
• Power Cord with NEMA Twist Lock Plug MTO options available

Compatible Accessories:
70211101 – Plug-In Microwave Occupancy Sensor
70226101 – Plug-In PIR Sensor 0-10V Dimming, 12-24 VDC
70224101 – Sensor Remote Control Programmer

Mounting Kits and Wire Guards
70532101 – Compact Linear High Bay Surface Mount Kit
70533101 – Compact Linear High Bay Pendant Mount Kit
70543101 – Compact Linear High Bay Wire Guard for CLHB-1 & CLHB-2
