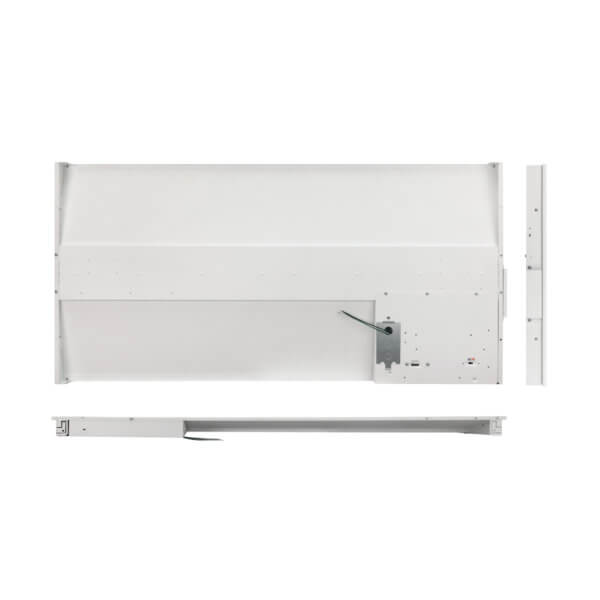

2′ x 4′ BOOST CENTER BASKET TROFFER
Part #: BCB-24-LB4-8-CP3-MV-LVD
Order #: 64702301
Watts: 39W/32W/29W/24W
CCT: 3500K/4000K/5000K
Input Voltage: 120-277V, 50/60 Hz
Part #: BCB-24-LB4-8-CP3-MV-LVD
Order #: 64702301
KEY FEATURES
ETi SSL’s Boost Center Basket LED Troffer series features a slim design for shallow plenums and offer three selectable CCTs and four selectable wattages—giving you flexibility and efficiency.
CCT & Light Quality
• 3 Selectable CCTs (3500K, 4000K, 5000K)
• 80+ CRI
Light Output & Efficacy
• 4 Wattage Options: 39W/32W/29W/24W
Dimming, Voltage, Controls
• 1–10V dimming to 10%
• Universal voltage (120–277V)
• BBU & OC Sensor Options Available
• Life projected L70 @ 100,000 hours.
Available Accessories:
70217101 – Boost Center Basket Motion Sensor
70224101 – Boost Center Basket Sensor Remote Control Programmer for Motion Sensor
70117101 – Boost Center Basket Emergency Battery Backup
70328101 – 2×4 Boost Center Basket, Surface Mount Kit
70331101 – 2×4 Boost Center Basket, Drywall Kit
70334101 – Boost Center Basket Aircraft Cable Kit
SPECIFICATIONS
Wattage | 39W/32W/29W/24W |
---|---|
Lumen Output | 5,460 |
Input Voltage | 120-277 |
CCT (K) | 3500K/4000K/5000K |
CRI | 80 |
DLC | Premium |
