SMD6 Surface Mount Disk, High Lumen, 3CCT Color Preference® with TwistFit Mounting System
Part #: FMDL-7.5IN-1500LM-8-CP3-SV-TD
Order #: 56578311
Lumens: 1500
Watts: 20
3 CCT: 3000K / 4000K / 5000K
Input Voltage: 120V, 60Hz
Wet Rated
Triac Dimmable
Part #: FMDL-7.5IN-1500LM-8-CP3-SV-TD
Model #: 56578311
KEY FEATURES

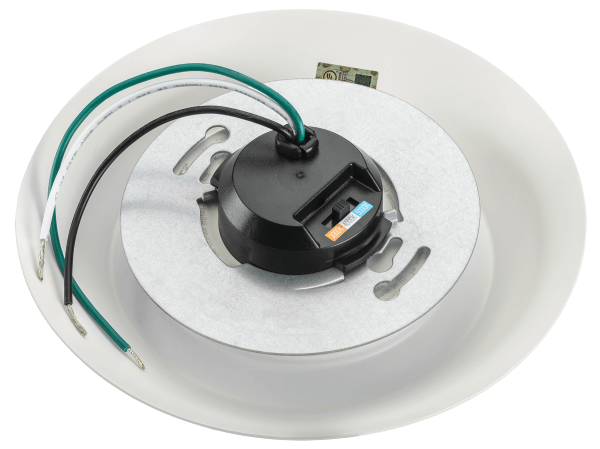

•ETi SSL’s patented Color Preference with 3 Selectable CCTs and feature our TwistFit mounting system that easily mounts to existing junction boxes for fast installation.
•Mimics the appearance traditional 6″ recessed downlights
•Triac dimming down to 10%—quiet and flickering free
• Wet location rated
• Clean, tight-fitting integrated LED trim freshens up old fixtures
• IC Rated for maximum thermal management
• Great for closets— meets NECA 410.16 requirement
Compatible Accessories:
90600756 – Brushed Nickel Trim
90600755 – Oil Rubbed Bronze Trim
90600754 – Black Trim
95657811101 – Torsion Springs & E26 Adapter Kit
70114402-2 – 40W Square Emergency LED Driver/BBU (GEN 3)
Compatible Dimmers:
LUTRON: DVCL-153, CTCL-153P, TGCL-153P, MACL-153M, PD-6WCL, LECL-153, SCL-153P, NTCL-250, GT-150 LEVITON: 6674, 6672, IPL06-10Z, DSL06-1LZ, TSL06, RDL06 EATON: SAL06P2 COOPER: DLC03P, SUT7, TAL06P2
SPECIFICATIONS
Lumen Output | 1592 |
---|---|
Wattage | 19.3 |
Input Voltage | 120 |
CCT (K) | 3000/4000/5000 |
CRI | 80 |
