56578411 – SMD6 Surface Mount Disk, high lumen, 3000K with TwistFit Mounting System

7.5in Disk Light with TwistFit Mounting System

Lumens: 1500
Watts: 20
CCT: 3000K
Input Voltage: 120V
Wet Rated
Triac Dimmable

Part #: FMDL-7.5IN-1500LM-8-30K-SV-TD
Model #: 56578411

7.5in Disk Light with TwistFit Mounting System

Part #: FMDL-7.5IN-1500LM-8-30K-SV-TD
Model #: 56578411

Lumens: 1500
Watts: 20
CCT: 3000K
Input Voltage: 120V
Wet Rated
Triac Dimmable

SMD6 Surface Mount Disk Light with TwistFit Mounting System
New Construction J-Box Installation or retrofit into 5″ or 6″ recessed can

Part #: FMDL-7.5IN-1500LM-8-30K-SV-TD
Model #: 56578411

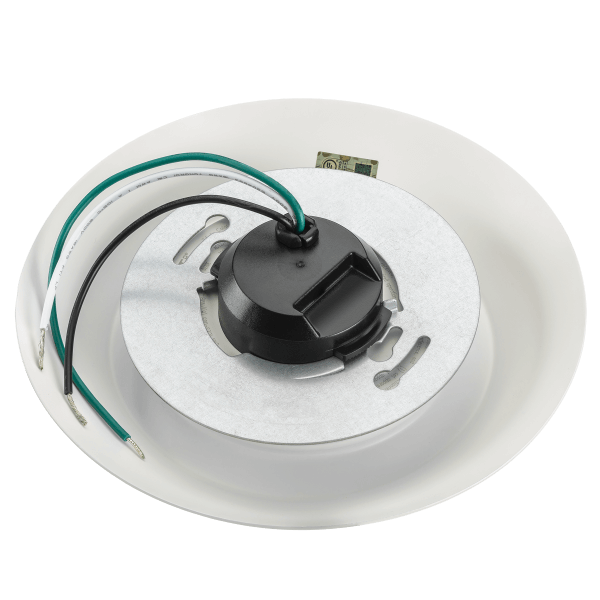

The SMD6 Surface Mount Disk is an easy-to-install “down light” solution for any location in home or office. Mounts quickly into an existing junction box using the included TwistFit mounting bracket. The SMD6 can also retrofit into many existing 5″ and 6″ cans.  This 7.5″ diameter fixture duplicates the appearance of a traditional 6″ recessed downlight.

ETi Advantage:

  • Value Priced lighting solution for both new construction and downlight retrofits
  • Bright, efficient 1000 Lumen light output
  • 3000K CCT
  • TRIAC Dimmable
  • Meets NECA 410.16 requirement
  • IC Rated for direct contact with ceiling insulation
  • Certified airtight per ASTM E283.04

Features and Specifications:

  • 20w, 1500 Lumens
  • 120V
  • 80 CRI
  • UL Wet rated
  • L70 > 50,000 hours
  • 5 year limited warranty

Compatible Accessories:
70112202 – 25w Emergency LED Driver with Lithium Ion Battery

Compatible Dimmers:
LUTRON:
DVCL-153, CTCL-153P, TGCL-153P, MACL-153M, PD-6WCL, LECL-153, SCL-153P, NTCL-250, GT-150
LEVITON: 6674, 6672, IPL06-10Z, DSL06-1LZ, TSL06, RDL06
EATON: SAL06P2
COOPER: DLC03P, SUT7, TAL06P2

SPECIFICATIONS

Lumen Output

1500

Wattage

20

Input Voltage

120

CCT (K)

3000

CRI

80
