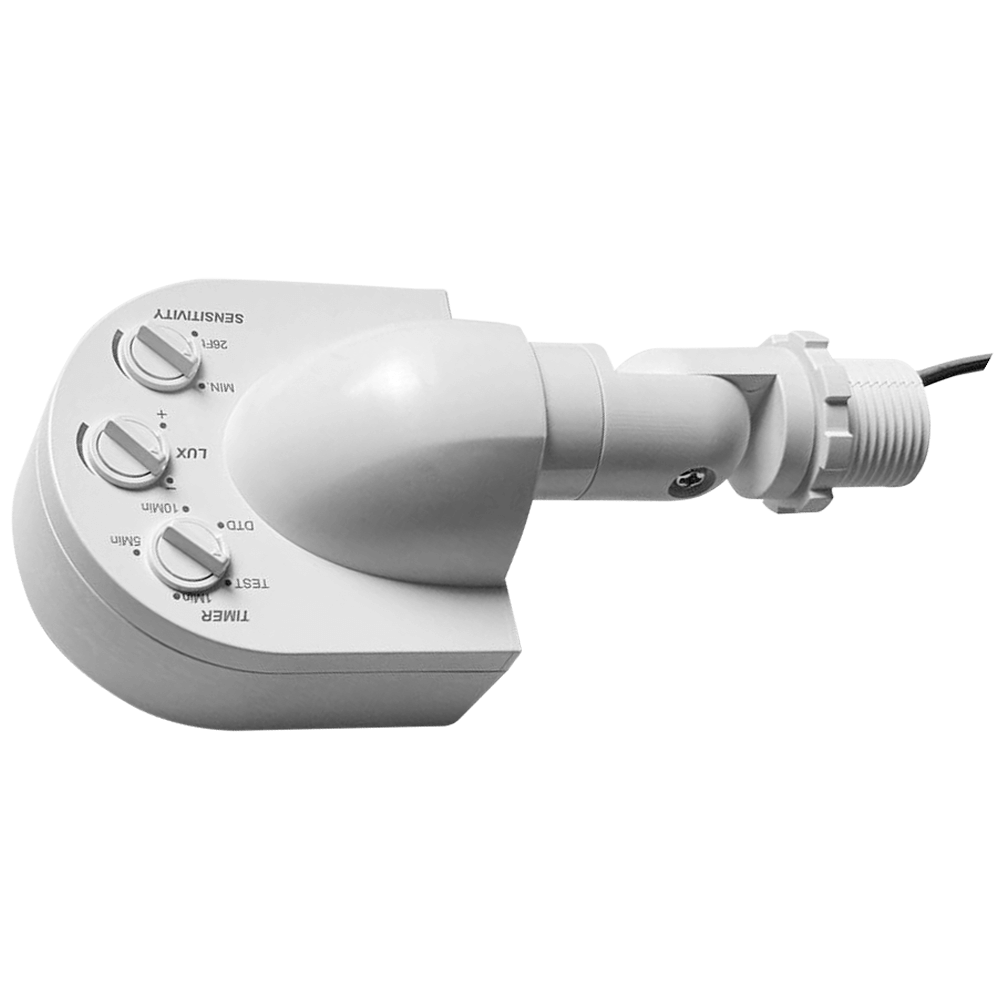

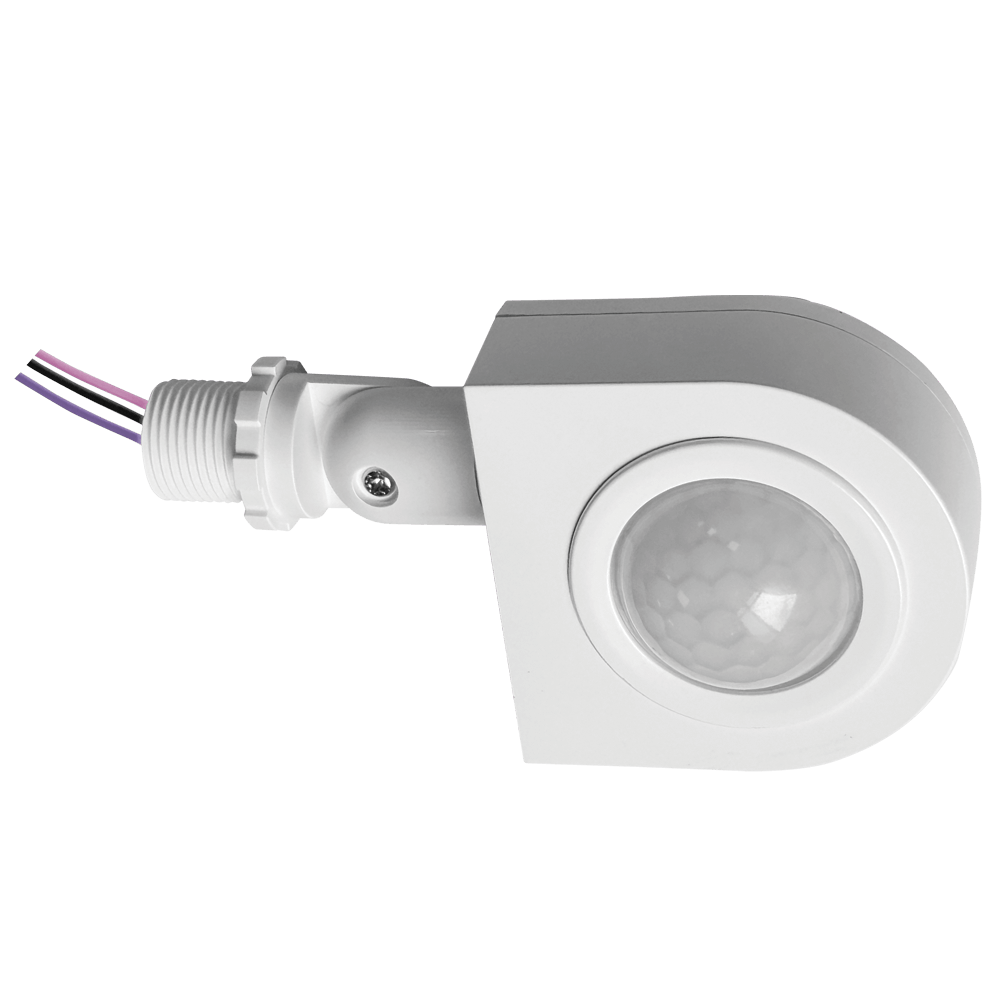

SCST PIR Motion Sensor

Part #: SCST-OC-KIT
Order #: W010000327

SCST | PIR Motion Sensor
FOR USE WITH SCST SELECTABLE STRIP LIGHTS
Dual PD | 15M High Bay

• Test Mode + Auto mode (1’-5’-10’) Manual Override +DTD mode
• Auto Mode Function: At dusk, The light will stay ON as long as the motion is detected when people leaving, the light will remain on for the predetermined time you set (1 min. or 5 min. or 10 minutes), and then turn off automatically.
• DTD Mode Function: Turn on the lighting fixture at full brightness at dusk and turn off at dawn automatically.
• Detection Range Ceiling Mount: Max. 26FT
• Detection Range Wall Mount: Max. 28FTx120°
• Delay Time Settings: 1 minute | 5 minutes | 10 minutes
• Operating Lux Settings: 10lux to 300lux
• Sensitivity Settings: 6FT to 26FT
• IP Rating: IP65
• Enclosure: Plastic, UV rated
