56567241 – EZ Install Direct | Indirect Architectural Wrap Light

Model #: 56567241
Part #: WR-4FT-6700LM-8-40K-MV-LVD

ETi SSL’s WR EZ Install Direct|Indirect Architectural Wrap Light Series provides efficient and economical ambient illumination for a wide range of ambient applications. Its unique design architecture makes for a very flexible project solution suitable for remodel, retrofit or new construction commercial and institutional projects. Our products are engineered using the latest innovative LED technologies to provide the perfect mix of modern design, performance, world class quality and reliability. All at a superior value to the designer, specifier, contractor and end-user.

This wrap series can provide direct illumination only (~3,977 lumens), indirect illumination only (~2,725 lumens) or both (6,702 lumens) that are easily controlled by simply toggling the wall switch on & off within 3-seconds of each other. The direct illumination LED array is paired with a low glare diffuse optical lens system that delivers an extremely uniform light distribution optimized for most general open ambient applications. A separate indirect LED array provides soft general up light illumination. Helping to create a warm and inviting architectural effect and feel within the space.

Three different primary mounting options (direct surface mount, suspension mount or pendant/stem mount) can also be paired with the ability for continuous row or end-to-end installation. Making for an extremely flexible and versatile architectural design solution. Combine this with the energy-saving LED direct|indirect illumination functionality and you will be hard pressed to find this much architectural ambient design capability for the same price, value and overall fixture performance.

Key Product Features:

• Direct illumination only (~3,977 LM), indirect only (~2,725 LM) or both (6,702 LM)
• Simply toggle the wall switch on & off within 3-seconds to switch lighting modes
• Can connect up to 8 fixtures
• Uniform illumination w/ diffusing lens for reduced glare & visual comfort

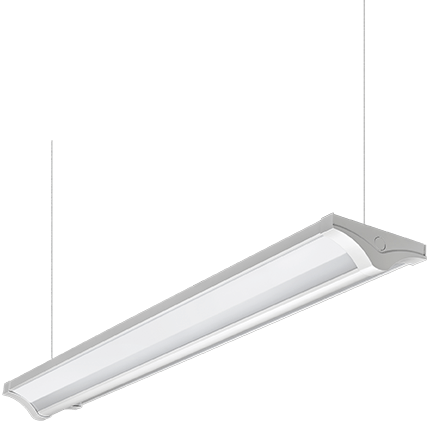

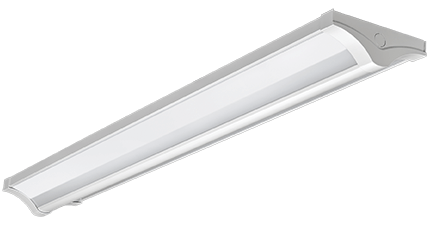

• (3) mounting options: surface, suspension (included) or pendant/stem (optional)
• Combine mounting options w/ continuous row mounting bracket (included)
• 120 LPW provides 60+% in energy savings vs. legacy fluorescent luminaires
• DLC qualified for energy savings & potential rebate eligibility
• 4000K, 80+ CRI standard for accurate color rendering & visual performance
• Reported L89/60,000, Projected L70 @ 180,000 hours (per IES TM21)
• Formed steel housing, die-cast end caps w/ hinged lens design for easy installation
• Standard -20° to 45° C (-4° to 113° F) high ambient temperature rating standard
• 120-277V drivers w/ 0-10V dimming capability as standard
• Side mount occupancy sensors for added energy savings & code compliance
• EM battery backup options for safety & code compliance (CA Title 20 MAEDBS) *** If fixture will be installed with a BBU (battery backup), please note surface mount installation is not recommended, as the BBU will turn the light on to indirect light which is not ideal when fixture is flush to the ceiling.

Compatible Accessories:
70101101 – Universal wattage BBU for non-isolated driver
70112202 – 25W Square Emergency LED Driver/BBU (GEN 2)
70112202-2  – 25W Square Emergency LED Driver/BBU (GEN 3)
70114402-2  – 40W Square Emergency LED Driver/BBU (GEN 3)
70112201-2  – 25W Round Emergency LED Driver/BBU (GEN 3)
70114401 – 40W Round Emergency LED Driver/BBU (GEN 2)
70114401-2  – 40W Round Emergency LED Driver/BBU (GEN 3)
70201101-2   – External Mount Step Dimming Microwave Occupancy Sensor
